Floor Standing Slab Urinal Adult Height – U05
-
Floor standing design for a clean, modern look
- Waste Size – 1 – 1/2″ BSP Waste
-
Durable stainless steel construction for high-use environments
-
Eco-friendly flushing with concealed sparge system
-
Supplied complete with plastic cistern, downpipe & domed waste
-
Ideal for schools, custodial, and industrial settings
-
Price includes VAT and free delivery across the UK
Custom size?
All Urinals can be made to any size and waste position. Contact us for more information.
Price includes VAT and complimentary delivery.
Price range: £990.00 through £1,798.00 Inc Vat
Pay later with Klarna available on checkout
Delivery
This item will be dispatched within 5–7 working days. Once dispatched, it will be sent via next working day delivery to UK mainland addresses. Please allow up to 3 working days for delivery to Scotland.
Dispatch dates are estimates and may increase during busy periods. *Subject to terms and conditions.
Description

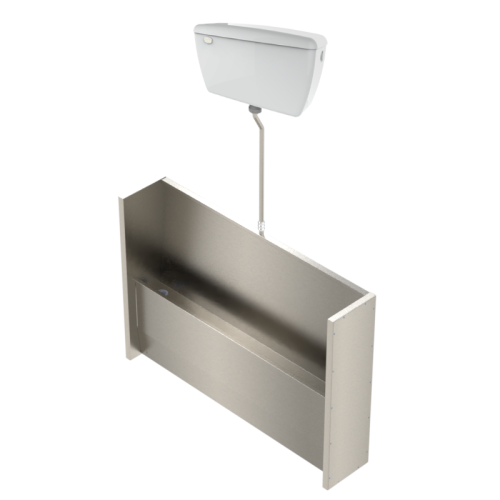

The U05 floor standing slab urinal is a robust, adult-height stainless steel solution designed for demanding commercial washroom environments. Built from durable stainless steel, it offers a clean, hardwearing finish and excellent long-term performance.
This model is supplied complete with a plastic cistern, stainless steel downpipe, and domed plastic waste, making it ready for straightforward installation. It also features an integral sparge pipe for efficient and even flushing, while the removable front access panel allows easy maintenance and fitting access when needed.
Being the manufacturer, Sterinox can also offer this unit in custom sizes to suit your specific requirements. For those seeking a tailored solution, we encourage enquiries about bespoke lengths, heights, or outlet configurations. This adaptability makes the U01 ideal for specialised commercial, custodial, and industrial applications.
Combine your order with:
CNC – Corner Capping – Combine two urinals together at a corner.
Down Pipe Cover – Protect the inlet pipe from the cistern against damage.
Splash Guard – Bolt on splash guard matched to the length of urinal.
Urinal Flushing Control – Smart automatic control of the solenoid. Flushes the cistern based on movement reducing water usage
1-1/2″ bottle trap – Prevents odours from drainage
This cistern is designed for straightforward installation using a petcock (isolation valve) and syphon. All work should be carried out by a competent installer and in accordance with current UK plumbing regulations.
- Secure the cistern in position using suitable wall fixings, ensuring it is level before fully tightening.
- Fit the syphon into the cistern outlet, making sure the rubber washer is positioned inside the cistern. Tighten the backnut hand-tight plus a small nip.
- Install the inlet valve into the cistern inlet with the sealing washer located internally.
- Fit a petcock to the incoming cold-water supply, positioning it so it remains easily accessible for isolation and maintenance.
- Connect the water supply from the petcock to the inlet valve using 15mm pipework and appropriate fittings.
- Fit the flush pipe to the syphon outlet, ensuring correct alignment.
Important:
Do not push the downpipe more than 25mm into the cistern, as excessive insertion can restrict syphon operation and prevent a full flush.
Once installed, slowly open the petcock, allow the cistern to fill, and check all connections for leaks. Adjust the inlet valve to achieve the correct water level and test the flush operation.
